Simulating the Beer-Lambert Law with Tidy3D#
In this tutorial, we demonstrate how to translate the absorption coefficient parameter (\(\alpha\) [\(\text{cm}^{-1}\)]) into a Tidy3D Medium and calculate volumetric power absorption using a 3D FieldMonitor and PermittivityMonitor.
[7]:
import matplotlib.pyplot as plt
import numpy as np
import tidy3d as td
import tidy3d.web as web
Creating a Lossy Medium#
Tidy3D follows the \(e^{-\omega t}\) convention, in which losses are represented by a positive imaginary part of the refractive index, here denoted as \(k\):
\(\tilde{n} = n + i k\)
We can relate \(k\) to the absorption coefficient from the Beer-Lambert law:
\(I = I_0 e^{-\alpha z}\)
where:
\(k = \frac{\lambda \alpha}{4\pi} \times 10^{-4}\) (using \(\lambda\) in microns and \(\alpha\) in cm⁻¹)
An important consideration is that Tidy3D uses microns (µm) as distance units, while \(\alpha\) is generally given in cm⁻¹.
With the \(k\) value, we can define a lossy medium using the `td.Medium.from_nk <https://docs.flexcompute.com/projects/tidy3d/en/latest/api/_autosummary/tidy3d.Medium.html#tidy3d.Medium.from_nk>`__ method.
Let’s consider a medium with a real refractive index of 3 and \(\alpha = 0.5\) \(µ\text{m}^{-1}\).
[8]:
# Define the central wavelength and frequency
wvl0 = 1.5
freq0 = td.C_0 / wvl0
n = 3
alpha = 0.5 # absorption in 1/µm
k = alpha * wvl0 / (4 * np.pi)
medium = td.Medium.from_nk(n=n, k=k, freq=freq0)
Relating k with Conductivity#
Alternatively, we can relate the complex refractive index with the complex permittivity and calculate the conductivity \(\sigma\).
\(\tilde{n} = n + i\kappa\)
\(\varepsilon_r = \tilde{n}^2 = (n^2 - \kappa^2) + i(2n\kappa)\)
\(\varepsilon'' = 2n\kappa\)
\(\sigma(\omega) = \omega \varepsilon_0 \varepsilon'' = 2\omega \varepsilon_0 n \kappa\)
\(\sigma(\omega) = \frac{4\pi \varepsilon_0 c}{\lambda} n \kappa\) [S/µm]
Again, following Tidy3D’s unit convention, the conductivity is in units of S/µm.
With the conductivity value, we can create the same medium using the regular td.Medium class.
As we can see, the two methods are equivalent.
[ ]:
# Equivalent conductivity-based definition to verify consistency
# Note that epsilon is the vacuum permittivity, not the relative permittivity
sigma = 4 * np.pi * td.EPSILON_0 * td.C_0 * k * n / wvl0
medium2 = td.Medium(permittivity=n**2, conductivity=sigma)
print(f"medium conductivity: {medium.conductivity:.6f}")
print(f"medium2 conductivity: {medium2.conductivity:.6f}")
medium conductivity: 0.003982
medium2 conductivity: 0.003982
Simulating the Beer-Lambert Law#
With the lossy medium defined, we can use it as the background medium in a simulation and calculate the absorbed power using the following definition:
\(P_{abs} = \tfrac{1}{2} \, \omega \, \varepsilon_0 \, \varepsilon'' \, |E|^2 = \tfrac{1}{2} \, \sigma \, |E|^2\)
First, let’s define the simulation object.
[10]:
sim_size = (1, 1, 11)
sim_center = (0, 0, 4.5)
run_time = 1e-12
min_steps_per_wvl = 30
# Broadband plane wave incident along +z
source_time = td.GaussianPulse(freq0=freq0, fwidth=0.2 * freq0)
source = td.PlaneWave(
center=(0, 0, 0),
size=(sim_size[0], sim_size[1], 0),
source_time=source_time,
direction="+",
)
# Periodic lateral boundaries and absorbing PML along propagation
boundary_spec = td.BoundarySpec(
x=td.Boundary.periodic(), y=td.Boundary.periodic(), z=td.Boundary.pml()
)
# 2D slice to inspect field decay through the bulk
field_monitor = td.FieldMonitor(
center=(0, 0, 0), size=(td.inf, 0, td.inf), freqs=[freq0], name="field_monitor"
)
# Bounding box enclosing the integration region for absorbed power
abs_monitor_geometry = td.Box.from_bounds(rmin=(-1e3, -1e3, 0), rmax=(1e3, 1e3, 1e3))
# Store volume fields for absorption post-processing
abs_field_monitor = td.FieldMonitor(
center=abs_monitor_geometry.center,
size=abs_monitor_geometry.size,
freqs=[freq0],
name="abs_field_monitor",
)
# Matching permittivity sample to extract the imaginary part
abs_permittivity_monitor = td.PermittivityMonitor(
center=abs_field_monitor.center,
size=abs_field_monitor.size,
freqs=abs_field_monitor.freqs,
name="abs_permittivity_monitor",
)
# Automatic mesh obeying the min steps per wavelength target
grid_spec = td.GridSpec.auto(
min_steps_per_wvl=min_steps_per_wvl,
override_structures=[],
)
# Assemble the simulation object with the lossy background medium
sim = td.Simulation(
size=sim_size,
center=sim_center,
grid_spec=grid_spec,
medium=medium,
sources=[source],
monitors=[field_monitor, abs_field_monitor, abs_permittivity_monitor],
run_time=run_time,
boundary_spec=boundary_spec,
)
[11]:
# Visual check of the structure cross-section at y = 0

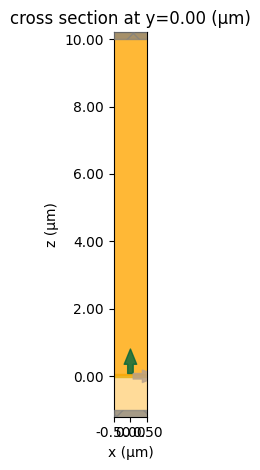

sim.plot(y=0)
plt.show()
Now we can run the simulation and process the data.
[12]:
# Submit the simulation to Tidy3D Cloud
sim_data = web.run(sim, task_name="absorption_calculation")
18:48:19 -03 Created task 'absorption_calculation' with resource_id 'fdve-593f57f7-1490-438d-91a9-76268f2b65e8' and task_type 'FDTD'.
View task using web UI at 'https://tidy3d.simulation.cloud/workbench?taskId=fdve-593f57f7-149 0-438d-91a9-76268f2b65e8'.
Task folder: 'default'.
18:48:22 -03 Estimated FlexCredit cost: 0.026. Minimum cost depends on task execution details. Use 'web.real_cost(task_id)' to get the billed FlexCredit cost after a simulation run.
18:48:23 -03 status = success
18:48:29 -03 loading simulation from simulation_data.hdf5
Data Processing#
First, let’s plot the fields, where we can observe an exponential decay in the field intensity.
[13]:

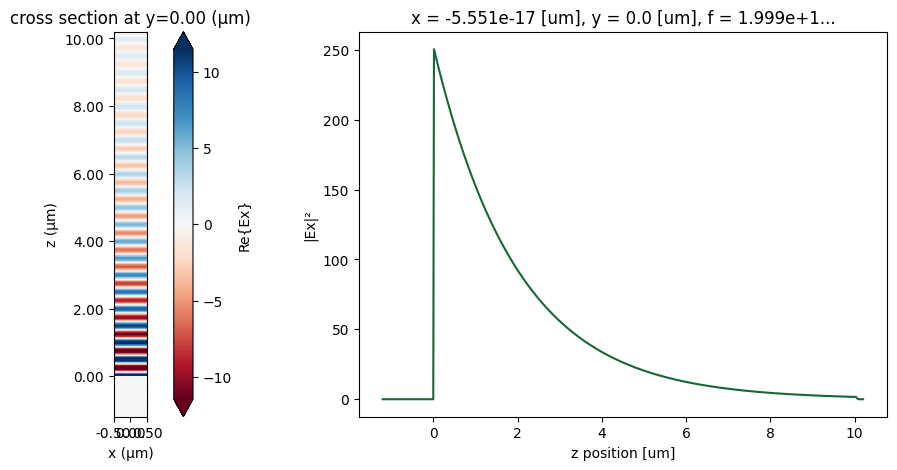

# Field snapshot and intensity decay along z
fig, ax = plt.subplots(1, 2, figsize=(15, 5))
sim_data.plot_field("field_monitor", "Ex", "real", ax=ax[0])
(np.abs(sim_data["field_monitor"].Ex) ** 2).sel(x=0, method="nearest").plot(ax=ax[1])
ax[1].set_ylabel("|Ex|²")
plt.show()
Now, we can calculate the volumetric absorbed power, using the following relation:
\(P_{abs} = \tfrac{1}{2} \, \omega \, \varepsilon_0 \, \varepsilon'' \, |E|^2\)
And compare with the analytical results, from Beer-Lambert law:
\(I = I_0 e^{-\alpha z}\)
[14]:
# Extract field components sampled in the absorption volume
Ex = sim_data["abs_field_monitor"].Ex.squeeze(drop=True)
Ey = sim_data["abs_field_monitor"].Ey.squeeze(drop=True)
Ez = sim_data["abs_field_monitor"].Ez.squeeze(drop=True)
x = sim_data["abs_field_monitor"].Ex.x
y = sim_data["abs_field_monitor"].Ey.y
z = sim_data["abs_field_monitor"].Ez.z
# Interpolate permittivity onto the same grid to access eps''
eps_xx = sim_data["abs_permittivity_monitor"].eps_xx.interp_like(
Ex, method="linear", kwargs={"fill_value": "extrapolate"}
)
E_square = np.abs(Ex) ** 2 + np.abs(Ey) ** 2 + np.abs(Ez) ** 2
omega = 2 * np.pi * freq0
# Compute volumetric absorbed power density and integrate over the box
P_abs_volumetric = 0.5 * omega * td.EPSILON_0 * eps_xx.imag * E_square
P_abs = P_abs_volumetric.integrate("x").integrate("y").integrate("z").squeeze()
print(f"Total absorbed power: {P_abs:.2f}")
print(f"Analytical absorbed power: {1 - np.exp(-10 * alpha):.2f}")
Total absorbed power: 0.99
Analytical absorbed power: 0.99
Finally, we compute the cumulative integral of the volumetric absorbed power along the full z-direction and directly compare the resulting energy loss with the analytical prediction given by the Beer–Lambert law.
[15]:

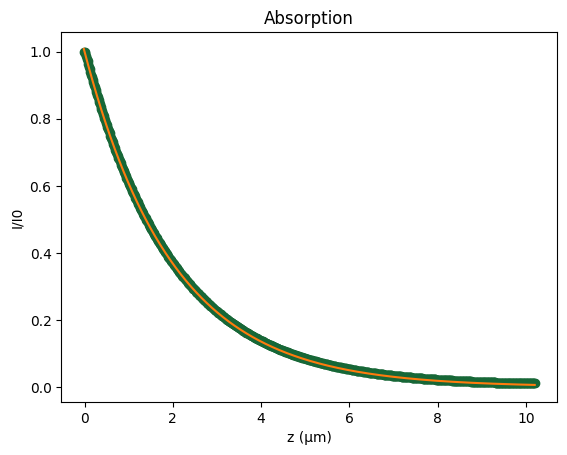

# Cumulative absorption along z to compare with Beer-Lambert prediction
I_z = P_abs_volumetric.integrate("x").integrate("y").squeeze()
from scipy.integrate import cumulative_trapezoid
C_z = cumulative_trapezoid(I_z, z, initial=0.0) # [W] absorbed up to each z
P_abs = P_abs_volumetric.integrate("x").integrate("y").squeeze()
I_analytical = np.exp(-z * alpha)
I = 1 - C_z
fig, ax = plt.subplots()
ax.plot(z, I, "o", label="Simulated")
ax.plot(z, I_analytical, label="Analytical")
ax.set_xlabel("z (µm)")
ax.set_ylabel("I/I0")
ax.set_title("Absorption")
plt.show()
